Business Switch - 16 Port PoE+​

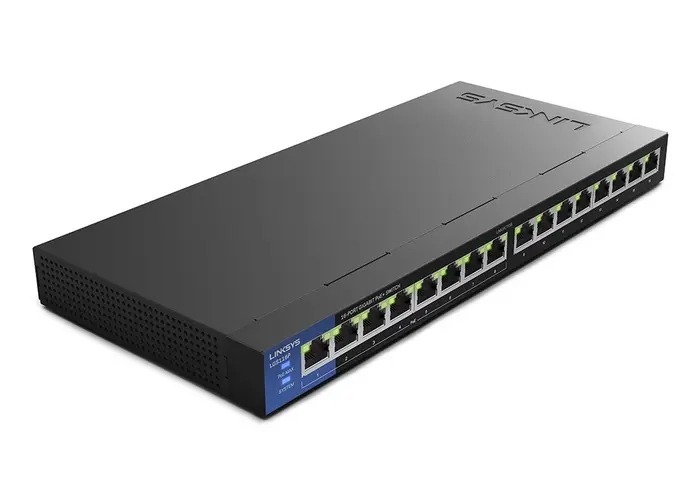

LGS116P 16-Port Business Desktop Gigabit PoE+ Switch

SKU:  LGS116P-UK

The 16-Port Gigabit PoE+ Switch accelerates productivity to Gigabit speeds, with PoE+, QoS and plug-and-play setup for ease of use.


Download Datasheet

Contact Us

Upgrade the data paths of your local wired network to information superhighways with 16-port desktop Gigabit PoE switches.

  • Wired connection speed up to 1,000 Mbps
  • 16 Gigabit Ethernet autosensing ports
  • Power over Ethernet Plus (PoE+) support
  • Easy plug & play connection
  • QoS
  • Meets EEE (Energy Efficient Ethernet) 802.3az standard


Power Consumption

  • 4.52 W / 11.31 W

LEDs

  • Link, speed, activity, and PoE indicators

Dimensions (LxWxH)

  • 280 x 120 x 25 mm (11.0 x 4.7 x 1.0 in.)

Weight

  • 0.902 kg (1.99 lbs)

Minimum System Requirements

  • Connected devices need Ethernet connectivity and Ethernet cables.

Operating Humidity

  • 10–90% (non-condensing)

Operating Temperature

  • 0–50°C (32–122°F)

Ports

  • 16-port switch with 8 PoE+ ports (first 1–8 ports) and dedicated PoE power budget of 80 W

 Mounting

  • Wall

Quality Of Service

  • 802.1p and DSCP

Storage Temperature

  • -40–70°C (-40–158°F)

Warranty and Support

  • 5 Year Warranty

MAC Address Table Size

  • 8,000 entries

Performance

  • 0.01488 Mpps for 10M port
  • 0.1488 Mpps for 100M port
  • 1.488 Mpps for 1000M port
  • Full line rate and forwarding rate of 64B frame at:

Power

  • 54 VDC, 1.66 A

Regulatory Compliance

  • FCC Class A, CE


Maximum Power Consumption

  • 5.18 W / 13.41 W

Fans

  • None

Power Consumption

  • 4.52 W / 11.31 W

Storage Humidity

  • 10–90% (non-condensing)

Power Saving

  • Cable connected detection, sleep mode

Network Standards

  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at (PoE+)
  • IEEE 802.3az
  • IEEE 802.3u
  • IEEE 802.3x

Bandwidth

  • 32 Gbps (non-blocking)

Features

Integrated Power-over-Ethernet (POE+)

Installation is simple and inexpensive by eliminating the need for additional power cables and nearby power outlets. Backwards compatible with 802.3af (PoE).

Plug-and-Play Convenience

Instantly extend any network with a quick and easy installation.

Gigabit Performance

Minimize transfer times and stream high-bandwidth files to connected devices without interference.
