Business Switch - 8 Port PoE+​

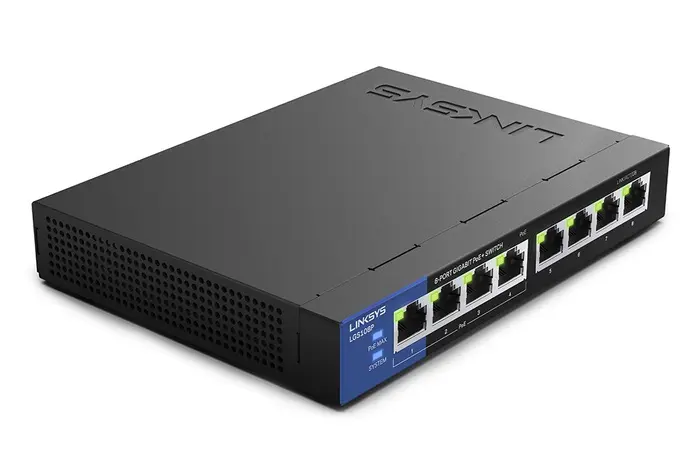

LGS108P 8-Port Business Desktop Gigabit PoE+ Switch

SKU: LGS108P-UK

The 8-Port Gigabit PoE Switch accelerates productivity to Gigabit speeds, with PoE+, QoS and plug-and-play setup for ease of use.


Download Datasheet

Contact Us


Upgrade the data paths of your local wired network to information superhighways with 8-port desktop Gigabit PoE switches.

  • Wired connection speed up to 1,000 Mbps
  • 8 Gigabit Ethernet autosensing ports
  • Power over Ethernet (PoE) support
  • Easy plug & play connection
  • QoS
  • Meets EEE (Energy Efficient Ethernet) 802.3az standard


Power Consumption

  • 3.83 W / 7.0 W

LEDs

  • Link, speed, activity, and PoE indicators

Dimensions (LxWxH)

  • 210 x 104 x 25 mm (8.3 x 4.1 x 1.0 in.)

Weight

  • 0.50 kg (1.10 lbs)

Minimum System Requirements

  • Connected devices need Ethernet connectivity and Ethernet cables

Operating Humidity

  • 10–90% (non-condensing)

Operating Temperature

  • 0–50°C (32–122°F)

Ports

  • 8-port switch with 4 PoE+ ports (first 1–4 ports) and dedicated PoE power budget of 50 W



Mounting

  • Wall

Quality Of Service

  • 802.1p and DSCP

Storage Temperature

  • -40–70°C (-40–158°F)

Warranty and Support

  • 5 Year Warranty

MAC Address Table Size

  • 8,000 entries

Performance

  • 0.01488 Mpps for 10M port
  • 0.1488 Mpps for 100M port
  • 1.488 Mpps for 1000M port
  • Full line rate and forwarding rate of 64B frame at:

Power

  • 54 VDC, 1.2 A

Regulatory Compliance

  • FCC Class A, CE



Maximum Power Consumption

  • 1.71 W / 5.08 W

Fans

  • None

Storage Humidity

  • 10–90% (non-condensing)

Power Saving

  • Cable connected detection, sleep mode

Network Standards

  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at (PoE+)
  • IEEE 802.3az
  • IEEE 802.3u
  • IEEE 802.3x

Bandwidth

  • 16 Gbps (non-blocking)



Features

​​​PoE+

Integrated Power-over-Ethernet (POE+)

Installation is simple and inexpensive by eliminating the need for additional power cables and nearby power outlets. Backwards compatible with 802.3af (PoE).

plug-play

Plug-and-Play Convenience

Instantly extend any network with a quick and easy installation.

performance

Gigabit Performance

Minimize transfer times and stream high-bandwidth files to connected devices without interference.
