Business Switch - 8 Port ​

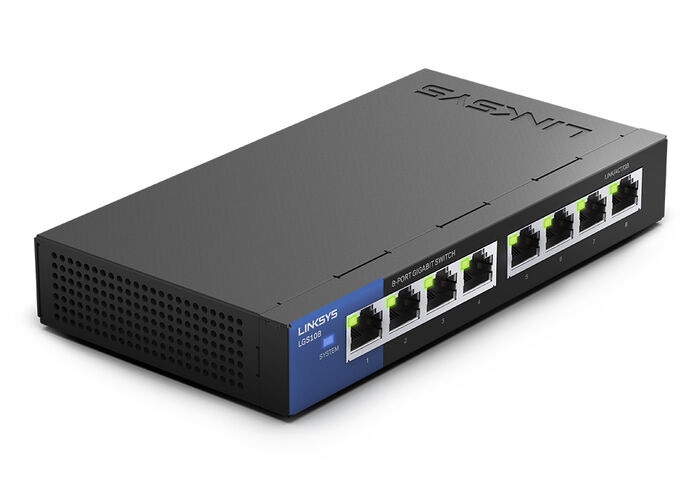

LGS108 8-Port Gigabit Switch

SKU: LGS108-ME-RTL

The 8-Port Gigabit Switch can accelerate productivity to Gigabit speeds, with QoS and plug-and-play configuration for ease of use.


Download Datasheet

Contact Us

Accelerate your performance and productivity when you send large files to network servers, drives, and printers at Gigabit speeds.

  • Wired connection speed up to 1000 Mbps
  • 8 Gigabit Ethernet auto-sensing ports
  • Easy plug & play connection
  • QoS
  • Meets EEE (Energy Efficient Ethernet) 802.3az standard

Power Consumption

  • 0.997W/3.355W

LEDs

  • Link and activity indicators

Dimensions (LxWxH)

  • 168 x 90 x 26 mm

Weight

  • 0.358 kg

Minimum System Requirements

  • Connected devices need Ethernet connectivity and Ethernet cables

Operating Humidity

  • 10–90% (non-condensing)

Operating Temperature

  • 0–50°C

Ports

  • 8 Gigabit Ethernet (10/100/1000) Ports

Mounting

  • Wall

Power Input

  • 12V 0.5A

Storage Temperature

  • -40–70°C

MAC Address Table Size

  • 4,000 entries

Performance

  • 0.01488 Mpps for 10M port
  • 0.1488 Mpps for 100M port
  • 1.488 Mpps for 1000M port
  • Full line rate and forwarding rate of 64B frame at:

Power

  • 100-240VAC, 50/60Hz, 5VDC

Fans

  • None

Standards

  • 1.07W / 3.53W

Storage Humidity

  • 10–90% (non-condensing)

Power Saving

  • Cable connected detection, cable length detection, sleep mode

Network Standards

  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3az
  • IEEE 802.3u
  • IEEE 802.3x

Bandwidth

  • 16 Gbps (non-blocking)
